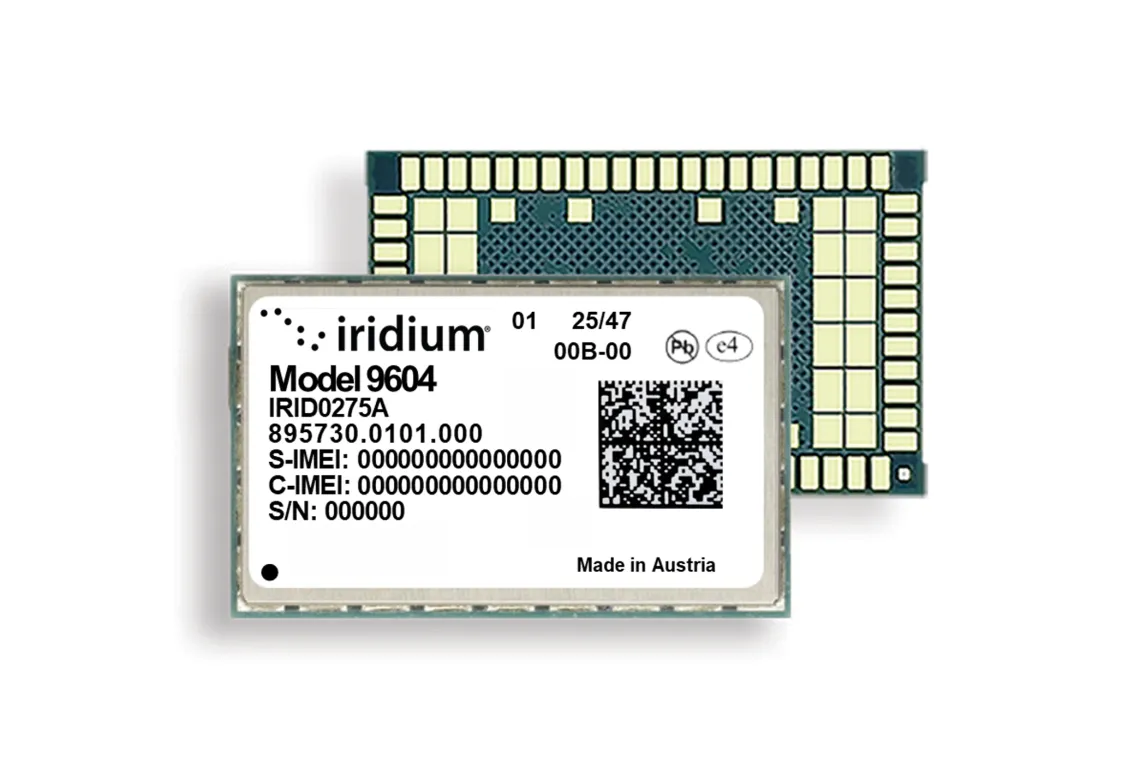

Iridium 9604 Hybrid LTE-M Cellular Iridium SBD Satellite GNSS Module for IoT

Product description: Satellite. Cellular. GNSS 3 in 1 Module The Iridium 9604 replaces three separate components with one integrated solution. • Lower costs, simplified design, and enabling of location-aware network sel
INQUIRY

The Iridium 9604 offers developers a hybrid connectivity module that
combines Iridium’s proven Short Burst Data® (SBD®) satellite, LTE-M
cellular, and integrated GNSS positioning in a single, compact module.

Simplified Integration

• Integrated module combining Iridium SBD satellite, LTE-M cellular, and GNSS in compact SARA
form-factor (16 × 26 × 2.4 mm).

• Cost savings by eliminating the need for three separate components - satellite modem, cellular
modem, and GNSS receiver – and creating one single module.

• Up to 60% less board space with shared antenna architecture, dual RF ports for Iridium/GNSS and
LTE, and unified power management for streamlined RF design.

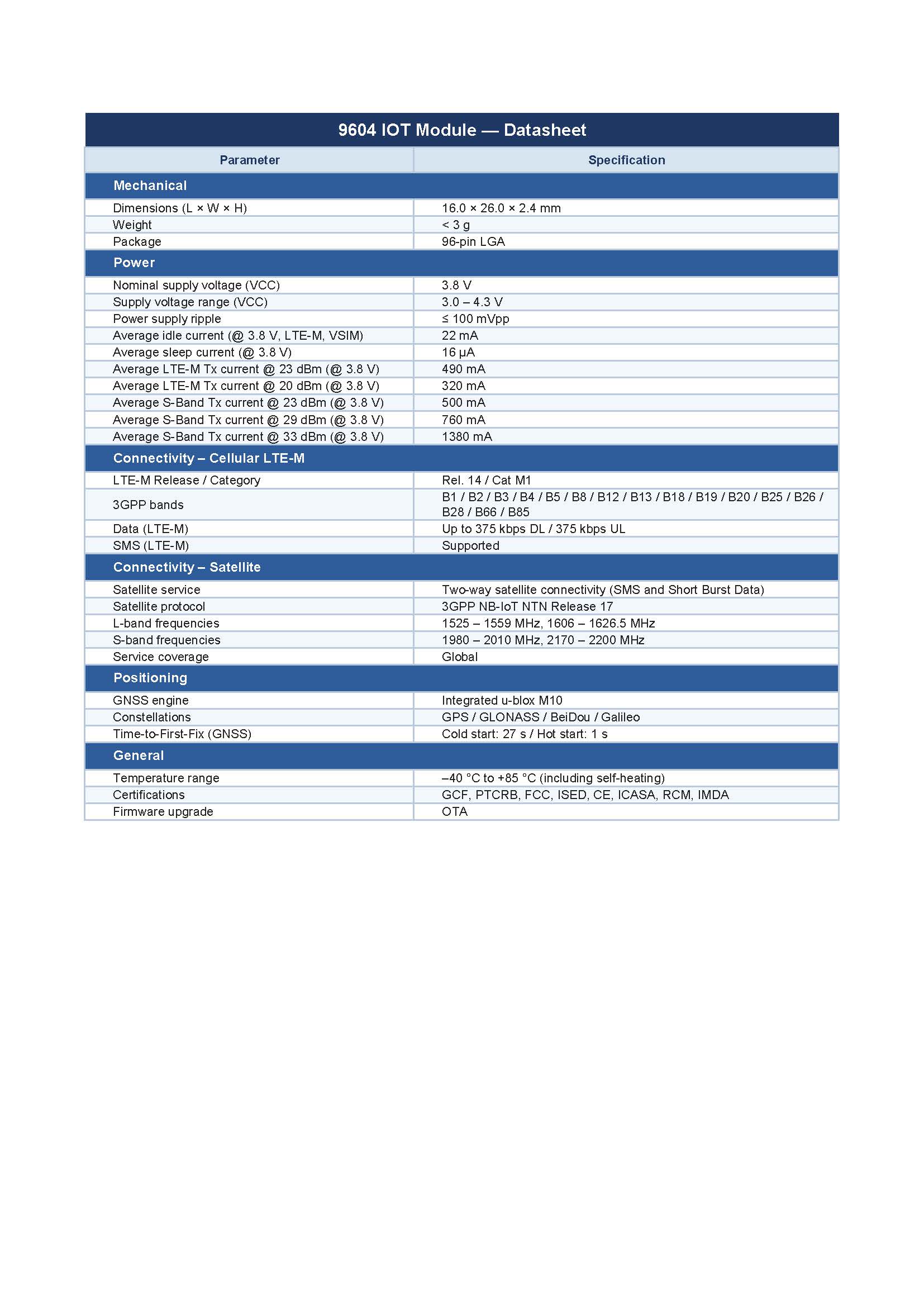

Technical Specifications
