4G GPS Tracker

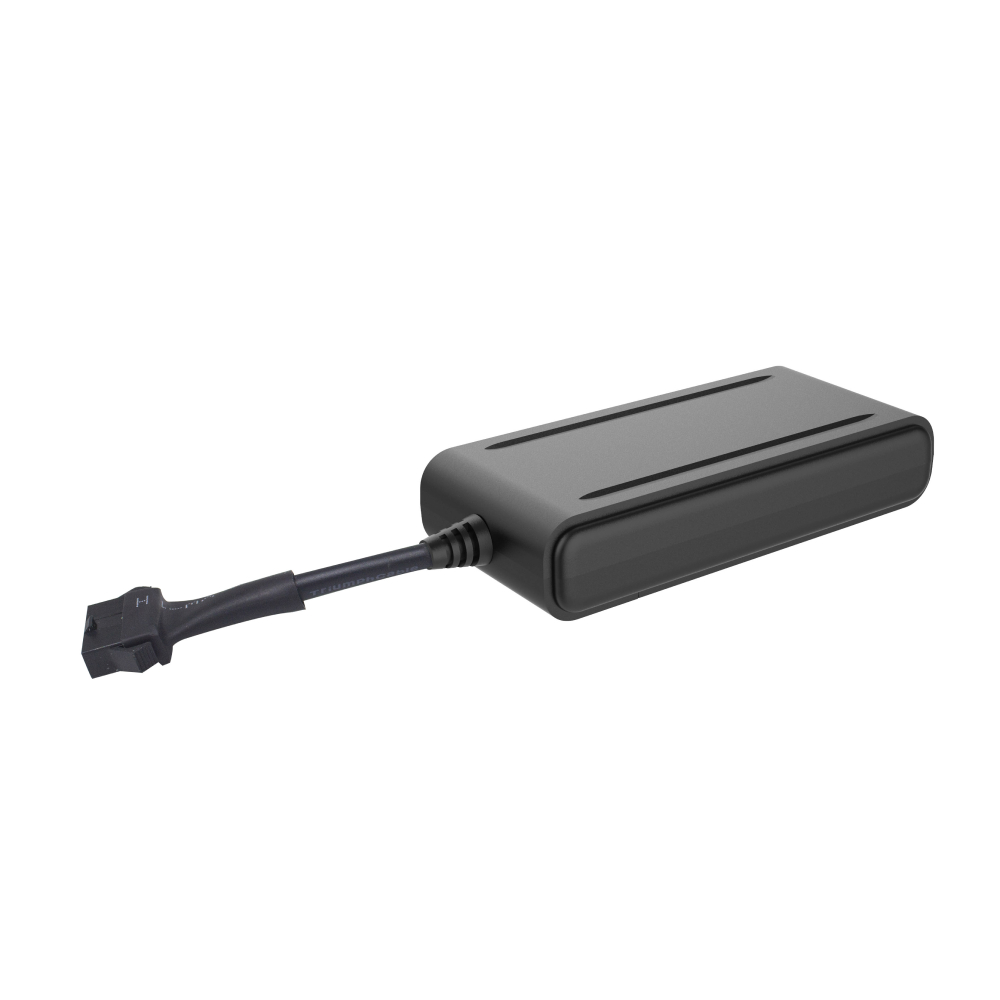

GT36 4G LTE GPS tracker

  • 4G tracker
  • mini LET tracker
  • GPS tracker with temperature sensor
  • LTE GPS tracker
  • Product description: 1. Compact design and small size 2. Smart power save 3. can connect with temperature sensor
  • INQUIRY

Features:

1. Real Time Tracking
2. wide working voltage: 9-75v
3. Alarm Type: Supports power cut alarm, over speed alarm, shock alarm, SOS alarm etc.
4. Remove Alert
5. History Replay
6. Smart Power Save
7. Flash Memory Built-in
8. Support the history data stores in the flash memory in blind area
9. Support history data re-upload.
10. stop/resume oil (optional)
11. SOS panic button (optional)
12. temperature sensor (optional)


Item

Function

Description

Electric

Woking Voltage

DC 9V - 75V

Working Current

12V/ average 35mA

Sleeping Current

12V/less than 10mA

Backup Battery

140 mAh (3.7V)

Environment

Working Temperature

-20 - 75

Storage Temperature

-30 - 80

Working Humididty

10%-85% RH

Communication

GSM Chip

QUECTEL EC200T

Frequency

LTE-FDD:B1/B3/B5/B8; LTE-TDD:B34/B38/B39/B40/B41

WCDMA:B1/B5/B8; TD-SCDMA:B34/B39

GSM/EDGE/2G: B3/B8

SIM Card

Micro SIM card

GSM Antenna

internal

GPS/BD Positioning

GPS Chip

XM1010

Satellite

Beidou+GPS

Cold Start time

Average 32sec

Warm Start time

Average 1sec

Tracking Sensitive

-162 dBm

Capture Sensitive

-148 dBm

GPS Antenna

Internal

Antenna

25mm * 25mm * 4mm

GPS Frequency Band

L1: 1575.42±1.023MHz

Beidou Frequency

Band

B1: 1561.098±2.046MHz

Satellite numbers

50

GPS Accuracy

<10m1σ)

GPS Accuracy

<30ns1σ)

Speed measurement accuracy

<0.1m/s1σ)

Max acceleration

4g

Max speed

515m/s

Max Elevation

18000m

External interface

Fuel/Engine control

Can connect to external relay

ACC detection

1 ACC

SOS

1 SOS (optional)

Outline

Dimension

80mm(L)* 38mm(W)* 17mm(H)

Housing Material

ABS Plastic

Weight

53g
